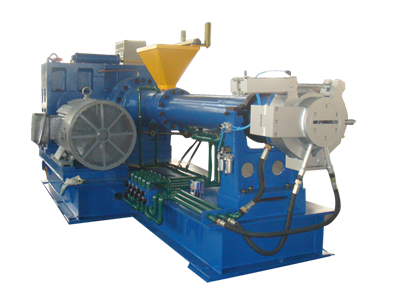

Cold-feed Rubber Extruder
Structure Formula:
Specification:
MODEL
XJW-60×15D
XJW-90×12D
XJW-120×12D
XJW-150×16D
The screw diameter, mm
60
90
120
150
The screw length to diameter ratio L/D
15
12
12
16
Screw the highest speed, r/min
79
60
50
43
Feeding mouth size, mm
80×55
120×80
160×100
180×125
Motor model
Y180L-4
Y280S-6
Z4-225-11
Z4-250-31
Power, KW
22
45
75
132
Height of center, mm
1200
900
1000
1000
Number of hot water circulation sections
3
3
3
4
Hot water circulation heating total power, KW
25
35
35
60
The largest production capacity, KG/h
180
360
800
1500
Overall dimensions, mm
2700×780×1560
2280×1000×1370
2789×1318×1706
6000×930×1545
Total weight, KG
2000
2500
4850
9000
Usage:
It is used for extruding rubber tread, tube, cable, strip, capsule and other rubber semi-finished products.
