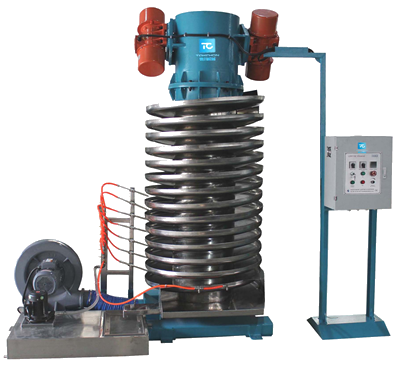

Vibrating cooler

Structure Formula:

Specification:

ITEM
Unit
LSX-1000
LSX-1150
Remarks
Rotary groove diameter
mm
1000
1150
Rotary groove width
mm
330
330
Rotary groove height
mm
1700
1900
Material conveying distance
mm
7000
9000
Max. distance
Helical pitch
mm
120
130
Feeding mouth width
mm
700
700
Conveying Speed
m/min
6--8
6--8
Motor Power
w
750*2
750*2
Weight
T
1.3
2
Dimension (L*W*H)
m
1.5*2.2*2.7
1.5*2.2*2.7

Usage:

Vibrating cooler/ cooling conveyer is a space-saving type cooling conveyor specifically developed for the effective cooling, separation and drying of hot rubber preformed by a preformer/extruder.
