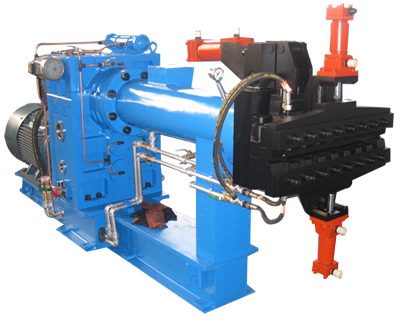

Hot-feed Rubber Extruder

Structure Formula:

Specification:

MODEL	XJ-65	XJ-85	XJ-115	XJ-120	XJ-150	XJ-200	XJ-250
The screw diameter, mm	65	85	115	120	150	200	250
The screw length to diameter ratio L/D	4D/6D	5D/6D	4.8D/6D	6D	4.43D/6D	4.35D/6D	4.5D/6D
The screw rotation speed, r/min	20,27,35,47	28,40,56,80	20,33,45,60	6～60	8.3～83	6.2～62	5.5～55
Feeding mouth size, mm	90×90	85x100	100×115	104×116	150×150	200×170	280×230
Motor model	Y160M-6	YD180L-8/4	Y200L2-6	Y200L-4	Y250M-4	Y315M-6	Y315L1-6
Power, KW	7.5	11/17	22	30	55	90	110
Height of center, mm	852	910	583.5	980	950	950	950
Steam pressure, MPa	0.6～0.8	0.6～0.8	0.6～0.8	0.6～0.8	0.6～0.8	0.6～0.8	0.6～0.8
Cooling water pressure, MPa	≥0.2	≥0.2	≥0.2	≥0.2	≥0.2	≥0.2	≥0.2
The largest production capacity, KG/h	80	210	420	420	1050	1800	3600
Overall dimensions, mm	1594×604 ×1053	1400×830 ×1270	2285×900 ×1335	2185×800 ×1325	-	-	-
With casing head, mm	-	-	-		3411×814 ×1470	4549×1140 ×1750	1950×1150 ×1503
With inner tube head, mm	-	-	-		3370×814 ×1369	4518×1140 ×1239	4775×1150×1503
Total weight, KG	3800	8200	10400	16500	17000	23000	23500

Usage:

It is used for extruding tire tread, tube, cushion belt, adhesive tape and other rubber semi-finished products.

Storage:
