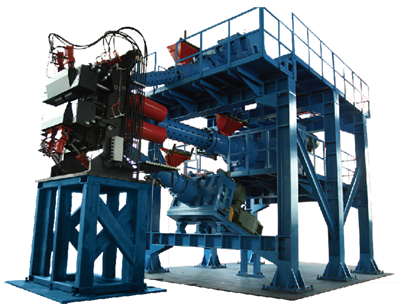

Triple Compound Extruder Set

Structure Formula:

Specification:

The unit is composed of pin-type cold feed extruders with fully automatic hydraulic head and automatic temperature control device.

MODEL	XJF-90×90×120	XJF-120×150×150	XJF-120×150×200	XJF-200×250×200
Extruders Model	XJD-90×14D XJD-90×14D XJD-120×14D	XJD-120×16D XJD-150×16D XJD-150×16D	XJD-120×16D XJD-150×16D XJD-200×16D	XJD-200×16D XJD-250×16D XJD-200×16D
The screw diameter, mm	90/90/120	120/150/150	120/150/200	200/250/200
The screw length to diameter ratio L/D	14/14/14	16/16/16	16/16/16	16/16/16
The highest screw speed, r/min	60/60/50	50/43/43	50/43/33	33/26/33
Feeding mouth size, mm	120×80 120×80 160×100	160×100 200×120 200×120	160×100 200×120 260×150	260×150 340×190 260×150
Pin number of rows	8/8/10	12/10/10	12/10/10	10/12/10
Motor model	Z4-180-41 Z4-180-41 Z4-225-11	Z4-225-11 Z4-250-41 Z4-250-41	Z4-225-11 Z4-250-41 Z4-315-12	Z4-315-12 Z4-355-12 Z4-315-12
Power, KW	55/55/110	110/220/220	110/220/355	355/450/355
Number of hot water circulation section	10	12	12	13
Total power of hot water circulation heating, KW	110	145	178	185
The largest production capacity, Kg/h	360/360/800	800/1500/1500	800/1500/2600	2600/3600/2600
Overall dimensions, mm	4600×2600×3300	7400×3600×3800	7800×3900×4200	9980×5816×6880

Usage:

It is used for all kinds of tire tread and other complex rubber components.
