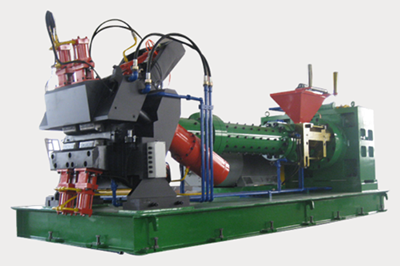

Pin-type Cold-feed Extruder
Structure Formula:
Specification:
MODEL
XJD-90×14D
XJD-120×14D
XJD-150×16D
XJD-200×12D
XJD-200×14D
XJD-250×12D
XJD-250×16D
The screw diameter, mm
90
120
150
200
200
250
250
The screw length to diameter ratio L/D
14
14
16
12
14
12
16
The highest speed of screw, r/min
60
50
43
33
33
26
26
Feeding mouth size, mm
120×80
160x100
200x120
260x150
260x150
340x190
340x190
Pin number of rows
8
10
10
8
10
8
12
Each row pin number
6
6
8
10
10
12
12
Motor model
Z4-180-41
Z4-225-11
Z4-250-41
Z4-280-32
Z4-315-12
Z4-315-42
Z4-355-12
Power, KW
55
110
220
315
355
400
450
Number of hot water circulation sections
3
3
4
4
4
4
4
Hot water circulation heating total power, KW
35
35
60
60
60
60
60
The largest production capacity, KG/h
360
800
1500
2600
2600
3600
3600
Overall dimensions, mm
2300×1060
×14503250×1250
×16503800×1590
×17005030×1950
×18505900×1950
×18505400×2400
×19206077×2400
×1920
Total weight, KG
3800
8200
10400
16500
17000
23000
23500
Usage:
It is used for extrusion of various rubber blanks.
