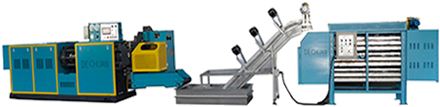

Water cooling conveyor

Structure Formula:

Specification:

The feature of LSS-650 Water cooling conveyor is that the running speed can be adjusted by the stainless steel net during the whole process to go with the cutting speed of the performer.

Technical Parameters:

ITEM Unit LSS-650 Remarks
Conveying width mm 450
Conveying Length mm
9000

Lift angle
°
40

Conveying Speed (Horizontal)
m/min
1.6-3.2

Water Tank Size (L*W*H)
mm
1460*800*270

Dimension (L*W*H)
mm
5200*850*1740

Layers
     3
Weight
T
0.8

Total Power
KW
1.8


Usage:

Water cooling conveyor is an auxiliary machine of the precision preformer to avoid stickiness and deformation of the rubber blanks. After cooling down with water cooling solution, and then with forcible cooling wind, the rubber blanks will become dry and solid.
